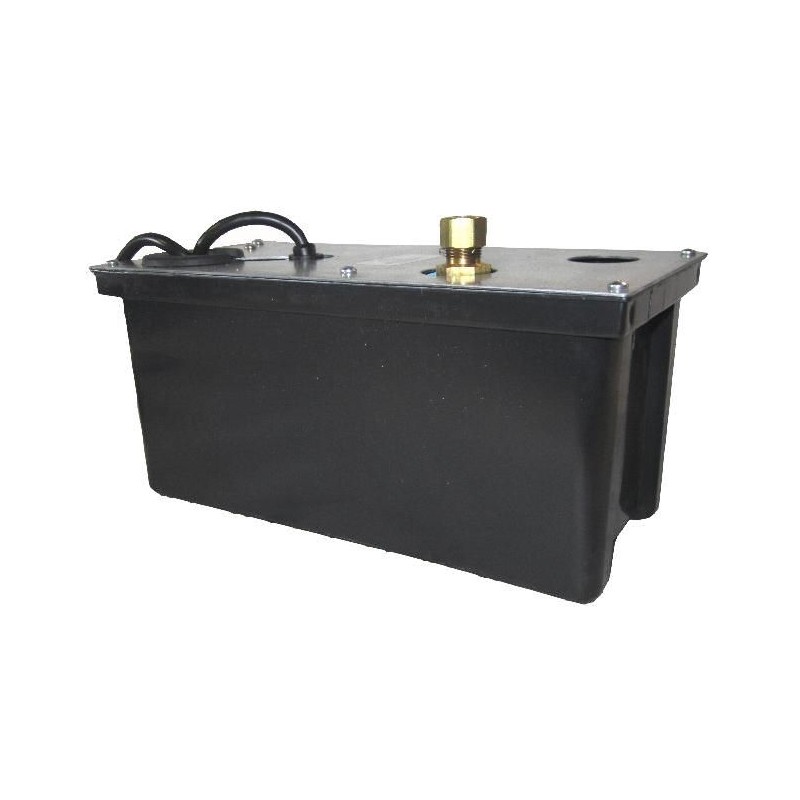

The Little Giant 3-ABS (551320) is a large-capacity shallow pan condensate removal pump designed for high-efficiency gas furnaces. The tank features an ABS plastic basin with a galvanized steel cover. The pump includes a nylon volute and impeller, epoxy-coated aluminum housing, stainless steel shaft, Viton shaft seal, and polyethylene pump screen.

Equipped with a non-mercury mechanical level switch and a safety switch, the pump can automatically shut down the HVAC system or trigger an alarm in case of overflow. This automatic condensate pump is ideal for demanding installations requiring higher pumping capacity.

Pump Specifications:

• Level Switch: Non-mercury mechanical

• Safety Switch: Normally open or normally closed, connects to HVAC shutdown or alarm

• Tank: 1 Gallon (includes safety switch)

• Pumping Level: On at 4.5" of water; Off at 3.5"

• Outlet: 1/2" MNPT discharge

• Electrical: 1/12 HP, 115V, 1 phase, 60 Hz, 210 watts, 3.5 amps, 6' power cord

• Construction: ABS plastic tank basin, galvanized steel cover, nylon volute and impeller, epoxy-coated aluminum pump housing, stainless steel shaft, Viton shaft seal, polyethylene pump screen

• Dimensions: Height 5-3/4", Length 12", Width 6"

• Weight: 11.5 lbs

Pump Capacity Table 3-ABS (551320):

Key Benefits:

• High 310 GPH pumping capacity for larger installations

• 1-gallon tank with integrated safety switch

• Non-mercury mechanical level switch for reliability

• Durable construction with ABS, aluminum, nylon, and stainless steel

• Automatic operation suitable for high-efficiency gas furnaces
