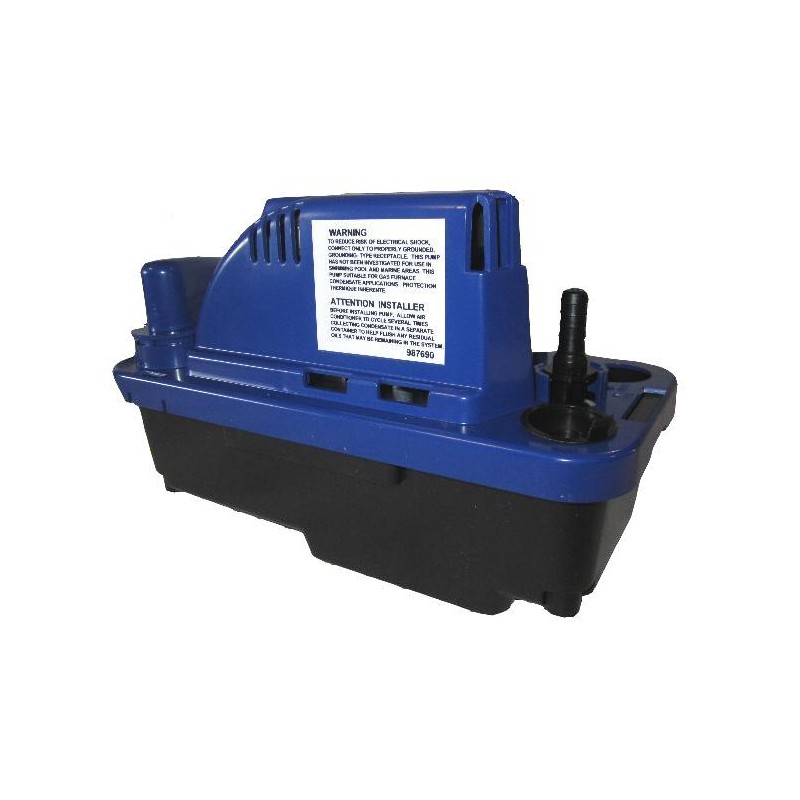

The Little Giant VCMX-20ULS (554530) is an advanced condensate removal pump designed with a slim footprint and oil-resistant tank and check valve, reducing the risk of cracked tanks. The 1/4 turn check valve allows servicing without removing tubing, preventing water spills. A patent-pending cooling design enhances pump life.

An external overflow safety switch allows connection to air-handler shutdown or an alarm system. Rubber feet reduce vibration, and the pump is suitable for high-efficiency gas furnaces.

Pump Specifications:

• Safety Switch: Activates at ~2.2" water level; can turn off thermostat or activate alarm

• Pumping Level: On at 1.6" of water, Off at 1.2"

• Construction: Polypropylene tank and impeller; ABS cover, volute, and float; acetal components

• Horsepower: 1/30 HP

• Flow: 84 GPH @ 1'

• Inlet: Three 1" inlet drain holes

• Outlet: 3/8" O.D. barbed discharge (accepts 3/8" I.D. tubing)

• Tank Size: 2/3 Gallons

• Electrical: 115V, 60 Hz, 93 watts, 1.5 amps, 6' power cord

• Dimensions: Height 6.5", Width 4.8", Length 10.2"

• Weight: 5.6 lbs

• Shut-off Head: 21'

Pump Capacity Table VCMX-20ULS (554530):

Key Benefits:

• Slim footprint ideal for tight installations

• Oil-resistant tank and check valve for durability

• 1/4 turn check valve for easy servicing without spills

• Patent-pending cooling design for longer pump life

• External safety switch for overflow protection and alarm/thermostat integration

• Rubber feet reduce vibration

• Suitable for high-efficiency gas furnace condensate applications
