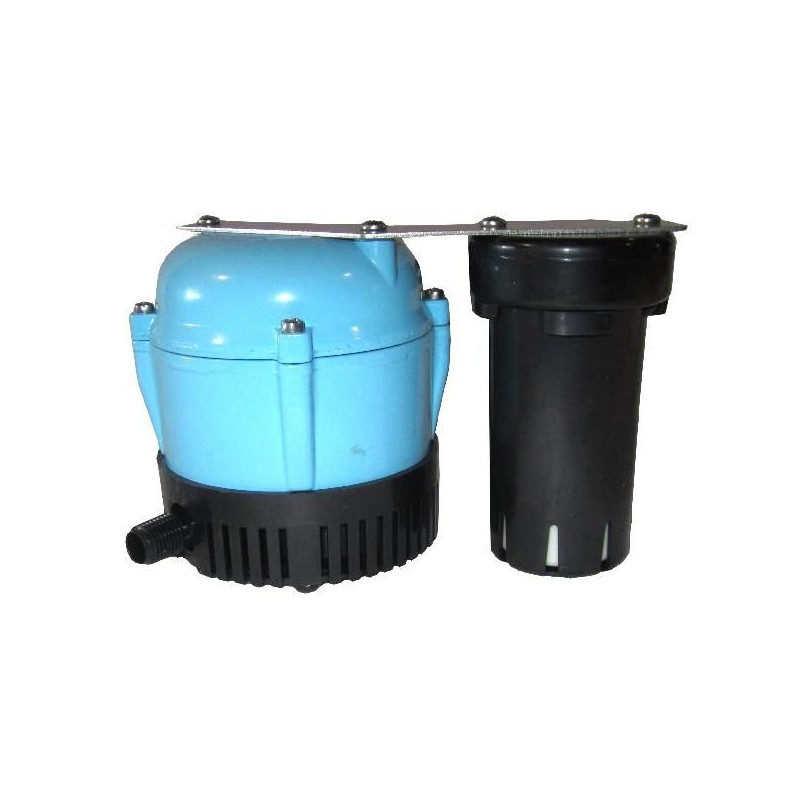

The Little Giant 1-ABS (550521) is a 205 GPH shallow pan condensate removal drain sump pump designed for in-pan mounting. It features an epoxy-coated aluminum housing with a bottom inlet and snap-off screen for easy cleaning. In addition to condensate removal for air conditioners, it is also commonly used in hydroponic applications.

The unit includes a normally open or normally closed safety switch that can be connected to shut down the air conditioner condenser or wired to an alarm to warn of possible tank overflow.

Pump Specifications:

• Pumping Level: On at 2-1/2" of water, Off at 1-1/2"

• Outlet: 1/4" MNPT

• Electrical: 1/150 HP, 115 volts, 1 phase, 60 Hz, 70 watts, 1.1 amps, 9' power cord

• Dimensions: 4.31" high, 6.09" long, 6.32" wide

• Weight: 3.5 lbs

• Housing: Epoxy-coated aluminum

• Applications: In-pan condensate removal, hydroponics

Pump Capacity Table:

Key Benefits:

• Compact shallow pan design for in-pan mounting

• High 205 GPH capacity for efficient condensate removal

• Epoxy-coated aluminum housing for durability

• Snap-off screen for quick and easy cleaning

• Suitable for HVAC and hydroponic applications

• Safety switch for overflow protection
