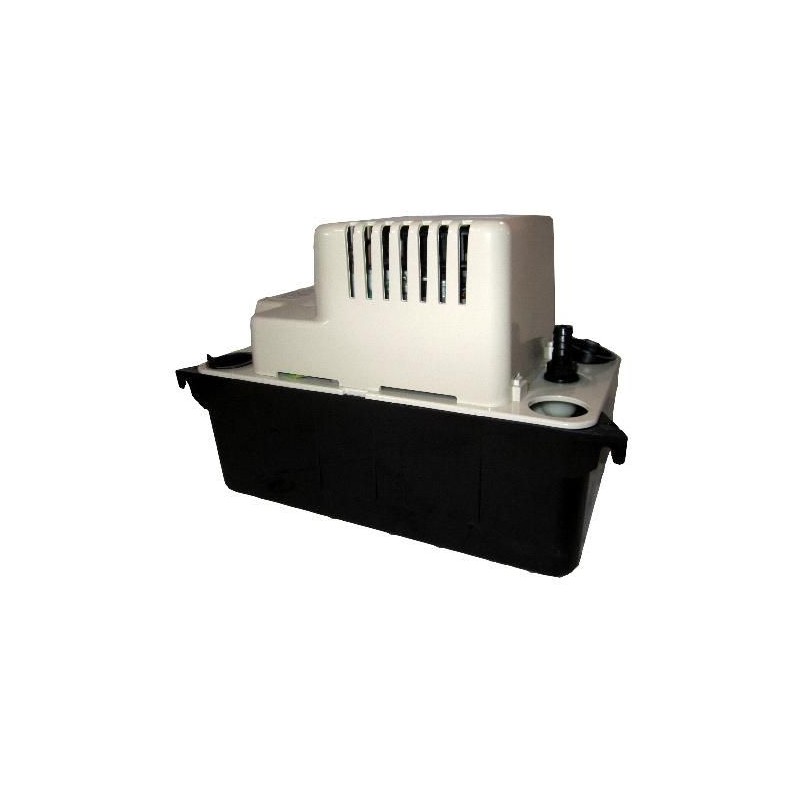

The Little Giant Pump Company condensate removal pumps are designed to efficiently manage wastewater from ice makers, beverage dispensers, drinking fountains, water coolers, and dehumidifiers. These pumps can handle condensate produced at a rate of up to 1 gallon per hour from residential central air conditioning units or gas condensing furnaces.

Installation involves connecting the appliance drain to the pump’s inlet port and attaching discharge tubing to the pump check valve. This tubing leads to a drain line, sump, French drain, or laundry sink. The “Lift” or “Head” of the pump indicates the vertical height the pump can raise water, while the “Run” is the horizontal distance it travels once lifted. Horizontal runs longer than 50 feet may reduce pump output by approximately 10%.

For safety, all installations should have the auxiliary safety switch properly wired to shut down the appliance in the event of pump overflow, which can be caused by a blocked discharge line, power loss, or pump malfunction.

Pump Capacity Table:

Key Benefits:

• Automatic condensate removal with float switch activation

• Auxiliary safety switch prevents overflow and protects appliances

• Suitable for ice makers, water coolers, HVAC systems, and dehumidifiers

• Tank capacities from 0.33 to 1 gallon, or tankless option available

• Easy installation with flexible discharge options
