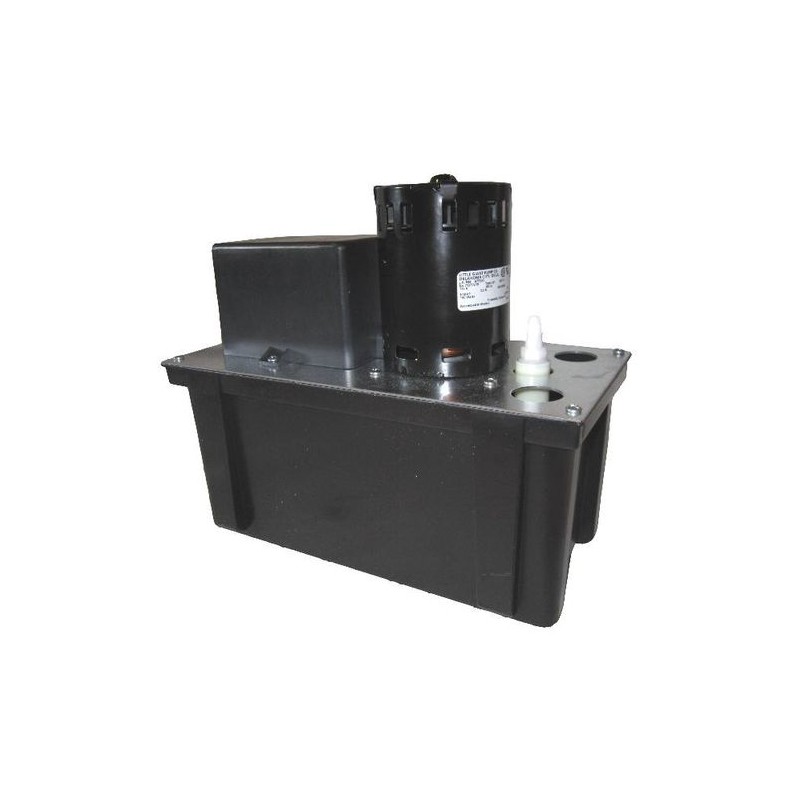

The Little Giant VCL-24ULS (553201) is a 270 GPH automatic condensate removal pump, featuring a 1-gallon tank and 1/18 HP, 115V motor. The unit comes with a normally open or normally closed safety switch that can be connected to shut down an air conditioner condenser or wired to an alarm to warn of possible tank overflow.

This pump is suitable for high-efficiency gas furnace condensate applications and provides reliable automatic operation with a pumping level of "On" at 3.50" of water and "Off" at 2.50".

Pump Specifications:

• Tank Size: 1 Gallon (Includes safety switch)

• Pumping Level: On at 3.50" of water, Off at 2.50"

• Outlet: 1/4" FNPT or 3/8" OD barbed adapter

• Electrical: 1/18 HP, 115 volts, 1 phase, 60 Hz, 148 watts, 2.5 amps, 6' power cord

• Dimensions: 10-5/8" high, 12" long, 6" wide

• Weight: 9 lbs

Pump Capacity Table:

Key Benefits:

• High-capacity 270 GPH pump for heavy condensate removal

• Includes safety switch for overflow protection or alarm connection

• Automatic operation for high-efficiency gas furnace applications

• Compact, reliable design with durable 1-gallon tank

• Easy installation with standard outlet adapters
