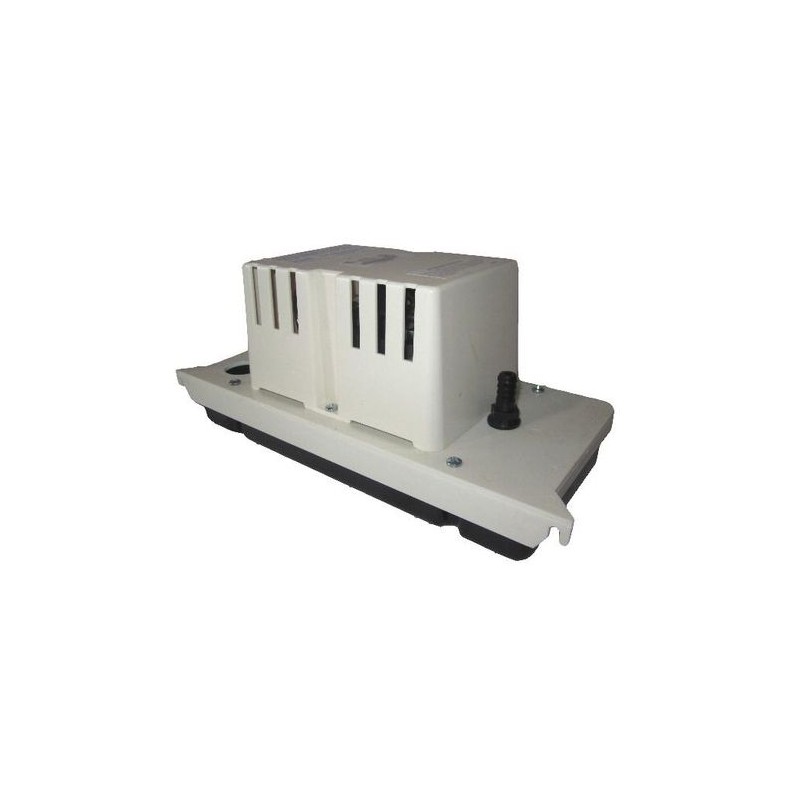

Little Giant Condensate Removal Pump 80GPH VCC-20ULS (554200)
Compact condensate removal pump for limited-space installations. Includes safety switch and check valve, ideal for gas furnace condensate applications.
-
Secured
-
Fast Delivery
-
7 days Return
The Little Giant 80 GPH VCC-20ULS (554200) condensate removal pump is a compact, low-profile unit designed for installations where space is limited. It comes with a safety switch and check valve, and is suitable for gas furnace condensate applications. This unit replaces the VCC-20ULS and compares to Beckett # CL201UL and Hartel KL-20-1UL.
The normally open or normally closed safety switch can be connected to shut down the air conditioner condenser or to an alarm to warn of possible tank overflow. The pump is activated at a 1" pumping level.
Pump Specifications:
-
Inlet: Three 1" inlet drain holes (reversible tank cover)
-
Outlet: 3/8" O.D. barbed discharge (accepts 3/8" I.D. tubing)
-
Tank Size: 1/3 Gallons
-
Electrical: 1/30 HP, 115 volts, 1 phase, 60 Hz, 93 watts, 1.5 amps, 6' power cord
-
Dimensions: 5-7/8" high, 12" long, 5" wide
-
Weight: 5.4 lbs
Pump Capacity Table:
| Model | HP | Head in Feet | GPH | Shut-off |
|---|---|---|---|---|
| VCCA-20-P (554201101) | 1/30 | 1', 5', 9', 15' | 80, 70, 55, 25 | 20' |
Key Benefits:
-
Compact, low-profile design for tight installations
-
Includes safety switch to prevent overflow or trigger alarms
-
Check valve included for reliable operation
-
Suitable for gas furnace condensate applications
-
Easy to install with reversible tank cover
