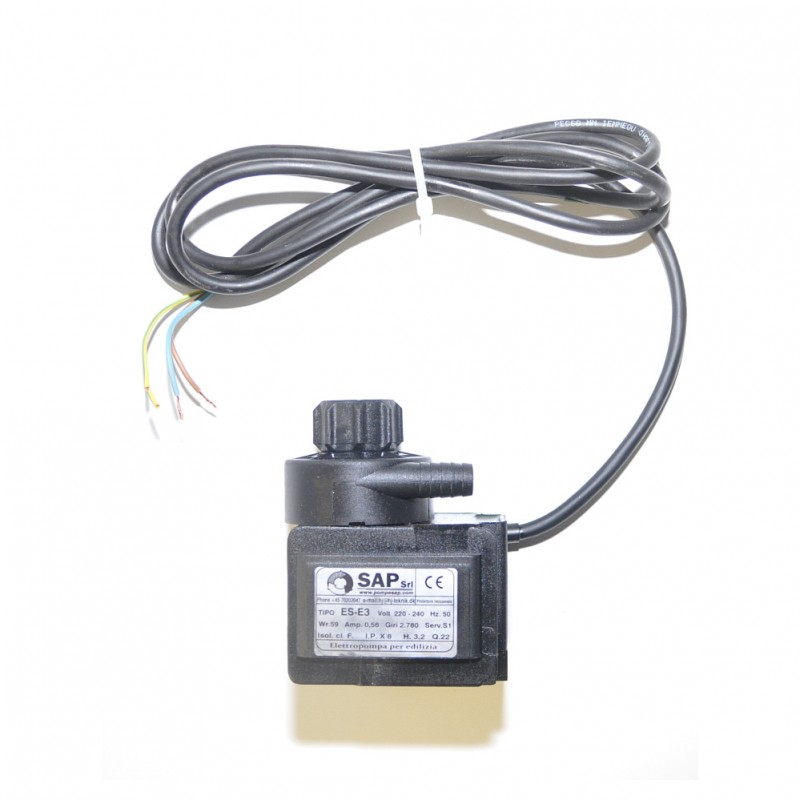

The SAP ES-ES3 Coolant Pump is a submersible, electrically operated pump developed for use in machine tools where smaller coolant volumes are required. It is commonly used in small band saws, drilling machines, and compact cutting systems, offering a reliable and efficient coolant supply.

Engineered for industrial use, the ES-ES3 pump is designed to operate completely submerged in coolant and meets the stringent requirements of IPx8 protection class (NEMA 6P equivalent). It comes equipped with a 6-foot power cable for easy installation and setup.

Despite its compact size, the ES-ES3 delivers a discharge head of 10.5 feet and a flow rate of 5.8 GPM (22 L/min). The housing is made of extruded aluminum and POM (polyoxymethylene) for strength and corrosion resistance, while the impeller is crafted from durable POM. The stainless steel (AISI 420) shaft and self-lubricating bearings in semi-rigid supports ensure smooth, long-lasting, and low-vibration operation.

Lightweight at just 2.78 lb, the ES-ES3 is easy to handle, install, and maintain, making it the ideal submersible coolant pump for smaller machine tools.

Applications:

• Small band saws

• Drilling machines

• Compact machine tools requiring low coolant volumes

• Submersible coolant systems

Key Features:

• Submersible pump designed for continuous immersion

• Ideal for smaller machines (band saws, drills, compact cutting equipment)

• Protection category: IPx8 (NEMA 6P)

• Supplied with 6-foot power cable

• Compact and lightweight (2.78 lb)

• Flow Rate: 5.8 GPM (22 L/min)

• Discharge Head: 10.5 feet

• Housing: Extruded aluminum, POM

• Impeller: POM

• Shaft: Stainless steel (AISI 420)

• Bearings: Self-lubricating in semi-rigid supports

• Outlet Thread Diameter: 0.45" (11.5 mm)

Specifications:

• Model: SAP ES-ES3

• Power Consumption: 0.08 HP (59 W)

• Voltage Options:

  • 110–120 VAC, 1 Phase

  • 220–240 VAC, 2 Phase

  • 24 VAC, 1 Phase

  • 48 VAC, 1 Phase

• Frequency: 60 Hz

• Capacity: 5.8 GPM (22 L/min)

• Discharge Head: 10.5 ft

• Weight: 2.78 lb (1.26 kg)

• Outlet Thread: 0.45” (11.5 mm)

• Protection Category: NEMA 6P (IPx8)
