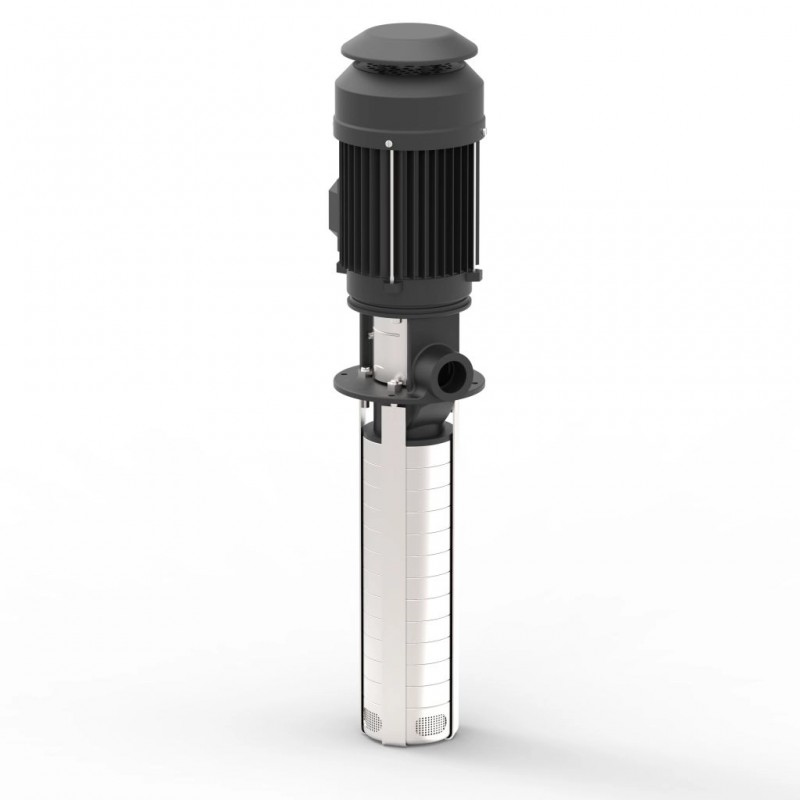

The Immersible Pumps (LIR Series) are engineered for reliability and efficiency in coolant and lubrication applications. These pumps are designed to be mounted directly on coolant lubricant tanks, with the pump end immersed in the coolant lubricant for optimal performance.

The hydraulic components are manufactured from stainless steel AISI304, ensuring durability, hygiene, and resistance to corrosion. The pump is powered by TEFC (Totally Enclosed Fan Cooled) induction motors designed to IEC standards, with IE2 efficiency rating for energy savings and long service life.

All cast iron parts are CED (Cathode Electrode Deposition) coated, providing uniform corrosion protection with a controlled deposition thickness of 20–30 microns. This ensures reliable operation in harsh industrial environments.

Applications:

• Coolant circulation in machine tools

• Lubrication systems in industrial processes

• Metalworking, grinding, and cutting operations

• Industrial cooling and fluid transfer

Key Features:

• Designed for tank-mounted immersible operation

• Pump hydraulics in stainless steel AISI304

• TEFC induction motors (IEC standard, IE2 efficiency)

• CED-coated cast iron parts for long-term corrosion resistance

• Controlled CED coating thickness: 20–30 microns

• Compact and reliable design for industrial applications

Specifications:

• Pump Type: Immersible Coolant Pump

• Series: LIR Series

• Material: Stainless Steel AISI304 (hydraulics), CED-coated cast iron (structural parts)

• Motor: TEFC Induction Motor, IEC standard, IE2 efficiency class

• Mounting: Directly on coolant lubricant tanks

• Coating: Cathode Electrode Deposition (20–30 microns uniform thickness)
