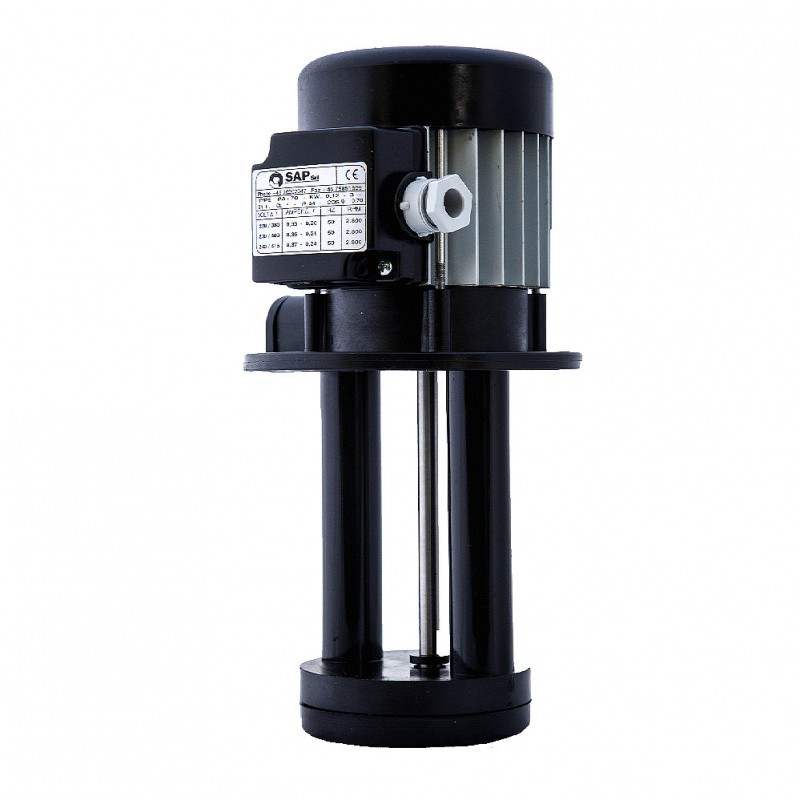

The SAP PA-70 Coolant Pump is a robust, motor-driven pump engineered for demanding industrial applications. Delivering approximately twice the flow capacity of the PA-35, the PA-70 is the perfect solution for machines with high coolant requirements, including surface grinders, large lathes, large milling machines, and glass processing machines. It is also suitable for occasional use with large band saws.

Built for industrial reliability, the PA-70 ensures long service life and vibration-free operation. It operates with three-phase current (with a single-phase PA-70M variant available) and complies with IP54 protection standards, offering strong resistance to dust and water spray.

The pump housing is crafted from extruded aluminum or non-flammable, acid-resistant plastic (standards VDE 0730 and UL 94). The shaft is made of V-2A stainless steel, while NSK bearings provide outstanding durability, noise reduction, and smooth performance.

This pump is resistant to coolants contaminated with particles and is compatible with all typical coolant chemicals. The adjustable flow rate (up to 80% throttling) allows for flexible operation, while the Quick-Fit inlet port ensures easy and fast installation.

Applications:

• Surface grinders

• Large lathes and milling machines

• Glass processing machines

• Large band saws (occasional use)

• General industrial coolant systems requiring higher flow capacity

Key Features:

• Twice the flow capacity of the PA-35 model

• Long-life, industrial-grade construction

• Operates on three-phase current (optional single-phase PA-70M)

• Meets IP54 protection standards

• Housing: extruded aluminum or acid-resistant, non-flammable plastic (VDE 0730 / UL 94)

• Shaft: V-2A stainless steel

• Bearings: NSK, vibration-damped, semi-rigid mountings

• Resistant to particle-laden coolants and coolant chemicals

• Adjustable flow (throttle up to 80%)

• Quick-Fit compatible inlet port for simple integration

Specifications:

• Model: SAP PA-70

• Power Supply: Three-phase (PA-70M single-phase available)

• Protection Rating: IP54

• Housing: Extruded aluminum / acid-resistant plastic

• Pump Shaft: Stainless steel V-2A

• Bearings: NSK, vibration-damped

• Flow Rate Control: Throttle up to 80%

• Inlet Port: Quick-Fit coupling compatible

• Application: High-capacity coolant pumping for machine tools
