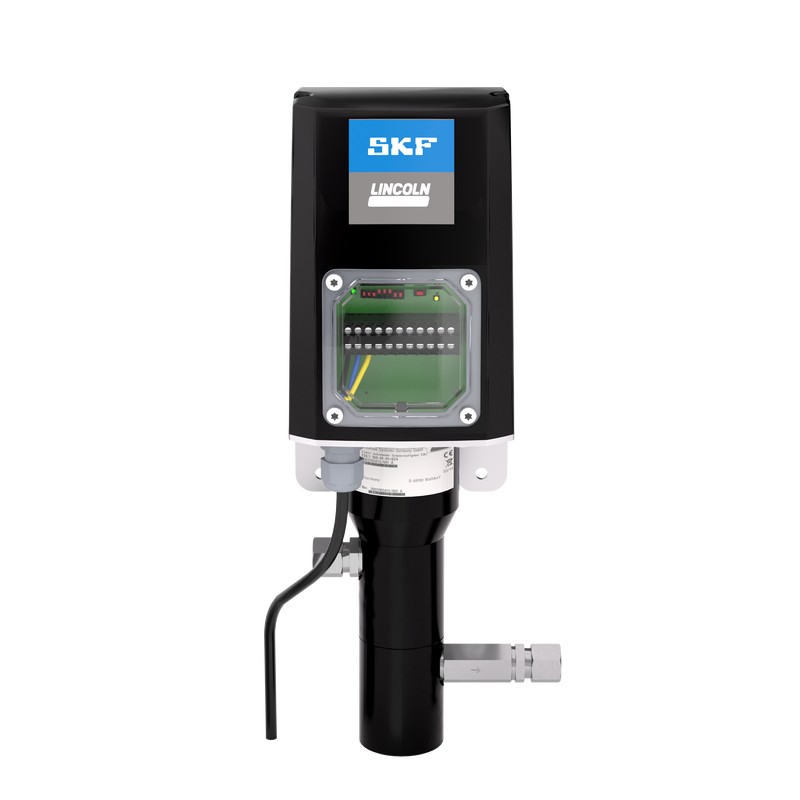

The Lincoln EDL1 electrically driven lubricator is an advanced dosage and pressure-booster pump that delivers unmatched performance and reliability in sectional lubrication systems. Engineered to increase input pressures from as low as 2 bar (29 psi) to a maximum of 280 bar (4060 psi), the EDL1 ensures precise and efficient lubrication across varying distances and machine requirements.

Thanks to its compatibility with progressive metering devices, the EDL1 provides flexible and self-sufficient operation, even in remote areas. Lubricant can be supplied via filling pumps or pressurized cartridges, offering excellent adaptability in different environments.

Designed for harsh industrial and outdoor conditions, the EDL1 is robust, easy to install, and comes equipped with an integrated control board for impulse- or time-controlled lubrication. With potential-free contacts for monitoring and an IP65 protection class, this lubricator is a dependable solution for modern lubrication needs.

Key Features & Benefits:

• Boosts lubricant pressure up to 280 bar (4060 psi)

• Works effectively with input pressures ≥ 2 bar (29 psi)

• Compatible with progressive metering devices

• Integrated control board for impulse- and time-controlled lubrication

• Potential-free contacts for reliable lubrication monitoring

• Ideal for expandable lubrication systems with central main supply

• Easy replacement for outdated lubrication pumps

• Optional pressure switch available

• IP65 protection class for harsh environments

• Compact and easy to install

Applications:

• Industrial:

  • Cement plants

  • Mining operations

  • Food & beverage processing

  • Heavy industry facilities

• Transport & Rail:

  • Wayside lubrication systems

  • Railway applications

Specifications:

• Pressure boost range: 2 bar input up to 280 bar output

• Lubricant supply: Filling pumps or pressurized cartridges

• Control system: Integrated board (impulse/time-controlled)

• Monitoring: Potential-free contacts, optional pressure switch

• Protection class: IP65

• Installation: Compact, easy to mount
