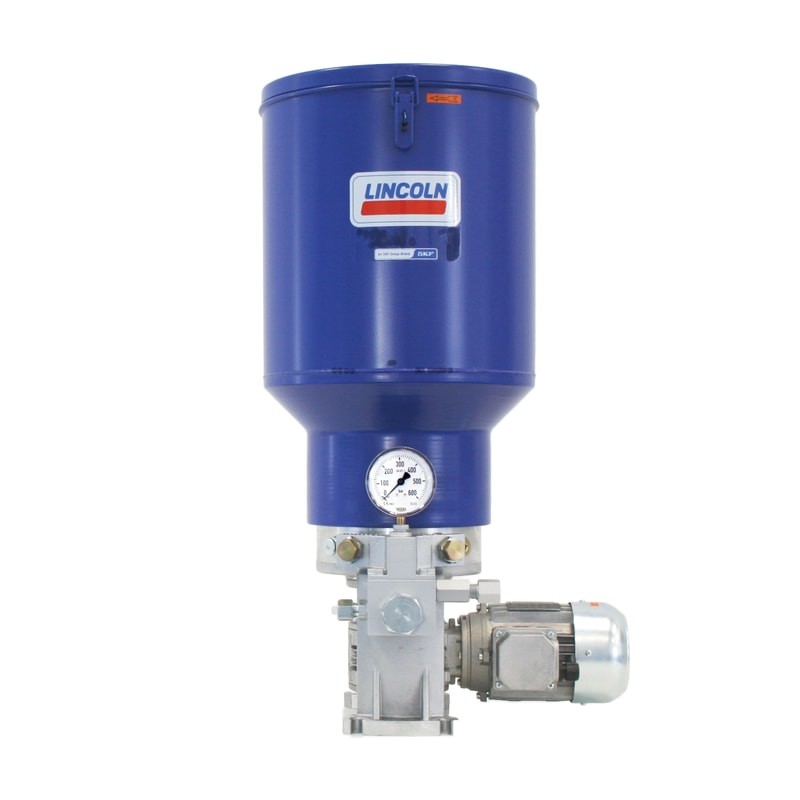

The ZPU 01/02 Series is engineered for efficient and consistent lubrication in industrial applications. Designed for use in progressive or dual-line lubrication systems, this pump is capable of supplying oil and grease (up to NLGI 2, or NLGI 3 on request) within a 50 m (54 yd) radius at a maximum pressure of 400 bar (5800 psi).

These high-pressure, high-volume pumps are available with 10 or 30 liter (2.6 or 8 gallon) reservoirs and are equipped with an integrated stirring device to ensure reliable performance across a wide temperature range. The ZPU 01/02 can be configured with one or two pump elements and offers ultrasonic low- and high-level control options for precise monitoring.

Key Features & Benefits:

• High-pressure (up to 400 bar / 5800 psi) and high-volume design

• Supplies lubricant within a 50 m radius

• Works with oil and grease up to NLGI 2 (NLGI 3 on request)

• Available with 10 L or 30 L reservoirs

• Integrated stirring device for consistent performance

• One or two pump element configurations

• Ultrasonic low- and high-level control options

• Free shaft end for use with other motors

• Reliable and versatile for industrial lubrication

Applications:

• Light to medium industrial applications

• Mixing machines

• Power plants

• Reclaimers

• Stackers

Specifications:

• Model: ZPU 01/02

• Type: Electrically Operated Lubrication Pump

• System: Progressive or Dual-Line

• Max Pressure: 400 bar (5800 psi)

• Lubrication Radius: Up to 50 m (54 yd)

• Reservoir Sizes: 10 L or 30 L (2.6 or 8 gal)

• Lubricant Compatibility: Oil and grease up to NLGI 2 (NLGI 3 optional)

• Pump Elements: 1 or 2

• Controls: Ultrasonic low- and high-level options

• Motor: Free shaft end for integration with other motors

Product Components:

• Pump housing with integrated stirring device

• 10 L or 30 L reservoir

• Pump element(s)

• Optional ultrasonic level controls

• Electrical connection parts
