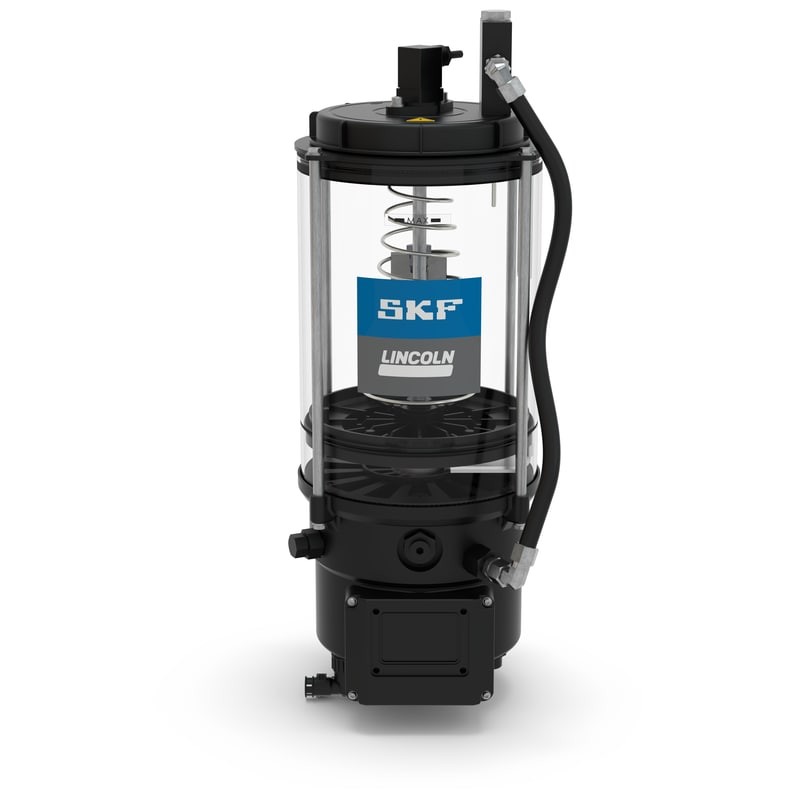

Overfilling a grease lubrication pump reservoir can cause serious problems, including equipment failure and costly downtime. The Mechanical Shut-Off Device (MSOD) is designed to safeguard lubrication pumps by automatically shutting off the filling process once the reservoir is full.

During filling, grease flows freely through the MSOD until the follower piston in the pump reservoir reaches the full level. At this point, the piston actuates a pin that mechanically closes the valve inside the MSOD. This stops additional grease from entering, causing a pressure build-up in the filling line that prevents the filling pump from pumping further.

The result is a simple, safe, and reliable shut-off system that requires no electricity to operate. It reduces manpower needs, minimizes spills, and protects both the pump investment and the environment.

Key Features & Benefits:

• Automatic and reliable shut-off of pump filling process

• Protects lubrication pumps (P203, P253 Smart, P603, P653) from overfilling

• Reduces equipment damage risks and extends machinery lifespan

• Saves time and labor costs by reducing manpower during filling

• Enhances worker safety by preventing grease spills

• Eco-friendly solution that prevents over-lubrication waste

• 100% mechanical operation; no power supply required

Applications:

• For use with single-line and progressive lubrication systems

• Compatible with P203, P253 Smart, P603, and P653 pumps with follower plate

Specifications:

• Type: Mechanical Shut-Off Device

• Operation: Mechanical (no electricity required)

• Function: Automatic shut-off when reservoir reaches full level

• Compatibility: P203, P253 Smart, P603, P653 lubrication pumps with follower plate

• Application: Grease lubrication pumps

Product Components:

• Shut-off valve body

• Mechanical pin actuator

• Connection fittings
