Key Specifications

• Sensor Type: Fuel cell alcohol sensor

• Detection Range:

  • 0.00 – 0.40% BAC

  • 0.00 – 4.00‰ BAC

  • 0.00 – 2.00 mg/L

  • 0.00 – 4.00 g/L

• Accuracy: ±0.01 at 0.05% BAC

• Pre-set Level: 0.05% BAC; 0.50‰ BAC; 0.25 mg/L; 0.50 g/L

• Warm-up Time: <5 seconds

• Testing Time: <5 seconds

• Display: 1.77-inch LCD

• Power Supply: 4×AA batteries

• Operating Environment:

  • Temperature: 0℃ – 50℃

  • Humidity: ≤95% RH, no dews

• Working Time:

  2000 tests per full battery charge

• Dimensions: 284mm × 68.5mm × 74mm

• Weight: Approximately 400g (with batteries)

Key Features

• Fuel Cell Sensor: Offers high accuracy and reliability in detecting alcohol concentrations.

• No Mouthpiece Required: Ensures hygiene and reduces maintenance needs.

• Rapid Testing: Provides results within 1 second, facilitating quick screenings.

• Color-Coded LED Indicators: Matrix red and green lights correspond to different results, aiding in quick interpretation.

• Switchable Units: Allows users to toggle between mg/L, g/L, %BAC, and ‰BAC units, as well as temperature scales (℃/℉).

• Compact Design: Ergonomic and portable, suitable for various environments

 Applications

• Law Enforcement: Ideal for roadside alcohol screenings.

• Workplace Safety: Ensures employees are fit for duty, especially in safety-sensitive industries.

• Personal Use: Allows individuals to monitor their alcohol levels before driving.

• Public Events: Facilitates quick screenings at festivals or gatherings.

 Safety Precautions

• Regular Calibration: To maintain accuracy, recalibrate the device every 6 months.

• Proper Storage: Keep the device in a dry environment to prevent sensor damage.

• Avoid Contaminants: Do not expose the sensor to smoke or other substances that can affect readings.

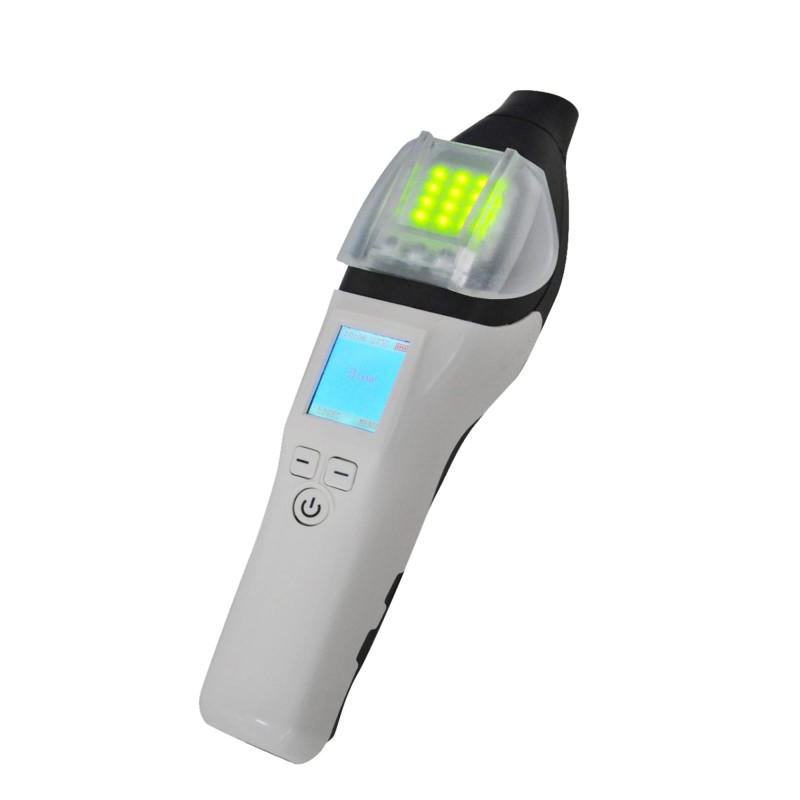

The AT7000 Portable Breath Alcohol Tester offers a combination of speed, accuracy, and ease of use, making it a valuable tool for various alcohol screening applications. If you need further assistance or have specific requirements, feel free to ask!
