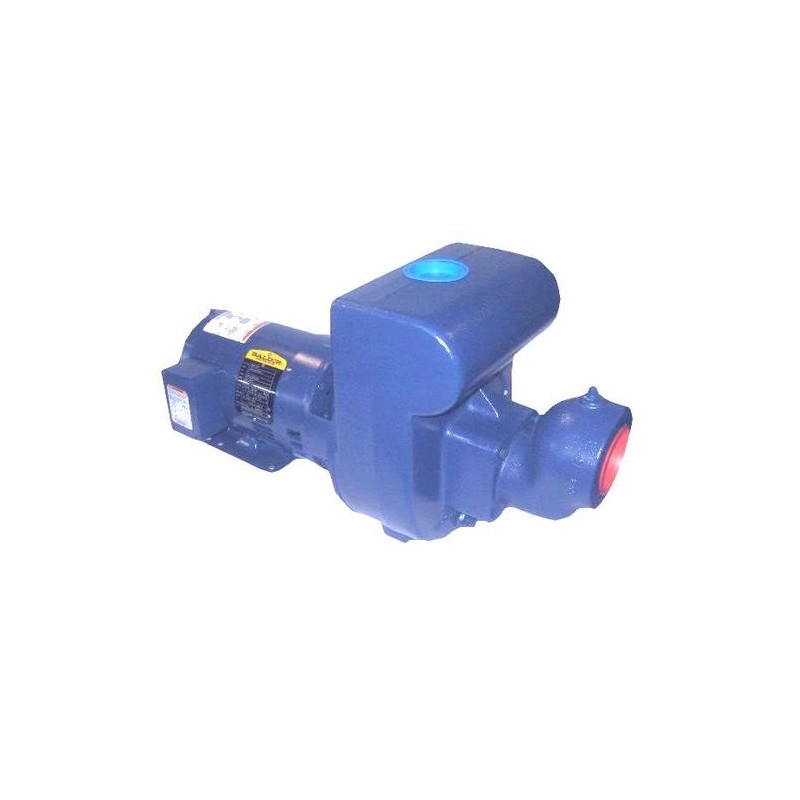

The Berkeley S40102LTM is a high-performance, self-priming swimming pool pump built for demanding applications. Delivering up to 172 GPM with a 5 HP motor, this pump is ideal for commercial pools, resorts, and water features.

Constructed from close-grained cast iron with bronze impeller and stainless steel removable shaft sleeve, it ensures maximum durability. The pump includes a suction flange with flapper check valve and is designed for easy installation and maintenance.

Key Features:

• Flow Rate: Up to 172 GPM at 15' suction lift

• Motor: 5 HP, 230V, single phase, 3450 RPM

• Construction: Cast iron pump case, bronze impeller, stainless steel shaft sleeve

• Self-Priming: Includes suction flange with check valve

• Max Case Pressure: 100 PSI

• Max Liquid Temperature: 180°F

• Motor Protection: Baldor continuous duty with overload protection

• Applications: Commercial pools, spas, water parks, and water features

Specifications:

• Model: S40102LTM

• Suction & Discharge: 3" X 2-1/2" FNPT

• Voltage: 230V, 1 Phase, 60 Hz

• Amps: 22.0 A

• Max Case Pressure: 100 PSI

• Max Liquid Temperature: 180°F

• Dimensions: 13-1/4" H x 21-3/4" L x 14" W

• Weight: 184 lbs

Performance Chart (GPM at various discharge PSI & suction lift):

Shipping Information:
⚠ Ships only via truck line to a commercial address with forklift/loading dock. Additional charges apply for residential, lift gate, or limited access delivery.
