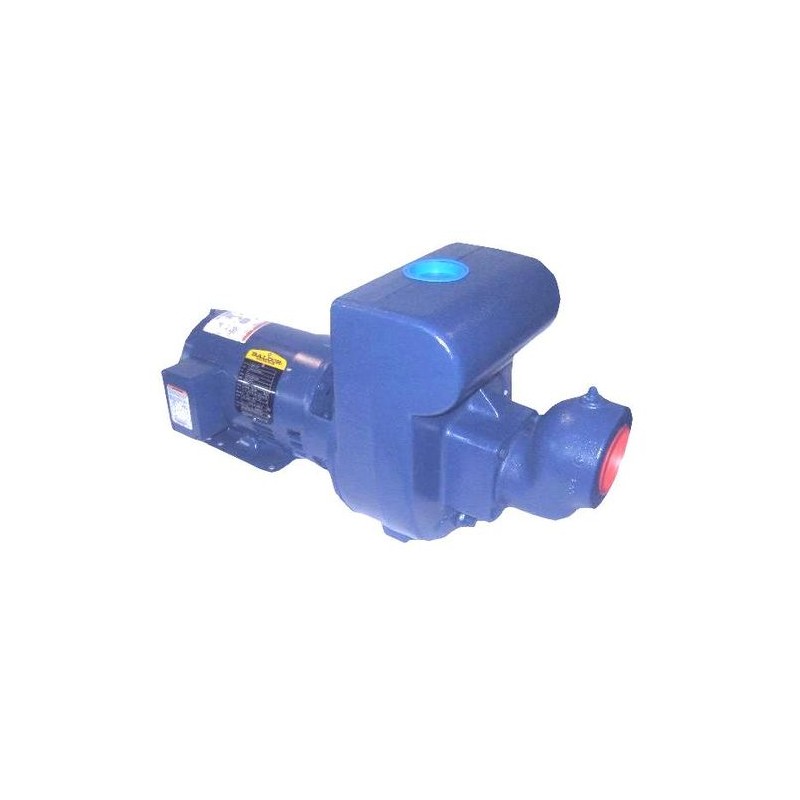

Berkeley cast iron, bronze fitted self-priming swimming pool pump with 110 GPM capacity, 3 HP motor, and heavy-duty construction for commercial applications.
The Berkeley S40100LTM is a heavy-duty, self-priming swimming pool pump designed for high-volume and high-pressure water circulation. Featuring a close-grained cast iron pump case, bronze impeller, and stainless-steel shaft sleeve, it ensures durability and long service life in demanding pool and spa environments.
This pump delivers exceptional flow rates of up to 159 GPM at low suction lifts and is suitable for large pools, spas, and water features. The Baldor continuous duty motor offers quiet operation, overload protection, and reliable performance.
Ships via truck line only to a commercial address with forklift and loading dock to avoid extra carrier charges.
Key Features:
3 HP, single-phase, self-priming pump
Cast iron pump case and diffuser for strength and durability
Bronze impeller for corrosion resistance
Stainless-steel removable shaft sleeve
Carbon/ceramic Buna-N shaft seal
Maximum liquid temperature: 180°F
Maximum case pressure: 100 PSI
Suitable for heavy-duty commercial applications
Includes suction flange with flapper check valve
Specifications:
Model: S40100LTM
Horsepower: 3 HP
Voltage: 230V, 1 phase, 60 Hz
RPM: 3450
Amps: 13.4
Connections: 2-1/2" FNPT suction × 2" FNPT discharge
Suction Flange: Included with flapper check valve
Max Liquid Temperature: 180°F
Max Case Pressure: 100 PSI
Dimensions: 13-1/4" H × 20-3/4" L × 12" W
Weight: 137 lbs
Capacity Rating Chart (GPM):
PSI | Suction Lift (ft) | 5' | 10' | 15' | 20' | 25' |
---|---|---|---|---|---|---|
20 | 159 | 154 | 146 | 138 | 99 | |
30 | 126 | 118 | 110 | 101 | 86 | |
40 | 85 | 75 | 51 | 26 | - |
