Grundfos Hot Water Cast Iron SuperBrute Circulator 10 GPM 3-Speed
Cast iron in-line 3-speed SuperBrute circulator pump for closed hot water systems, providing quiet, maintenance-free, energy-efficient performance.
-
Secured
-
Fast Delivery
-
7 days Return

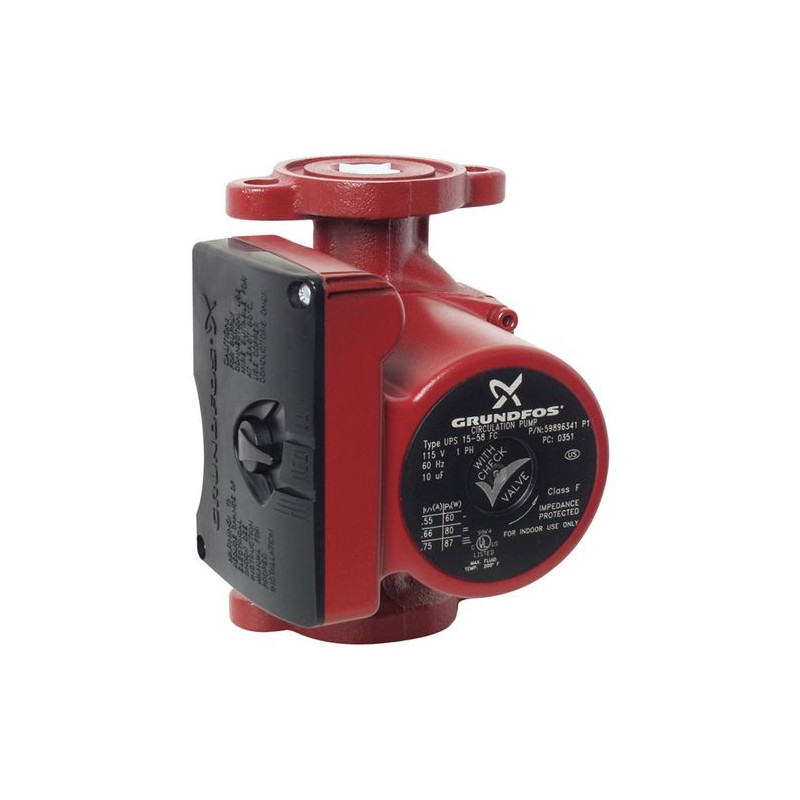

The Grundfos UPS15-58F is a cast iron, in-line, 3-speed hot water SuperBrute circulator, designed for closed system applications. The pump ensures quiet, maintenance-free operation with low energy consumption. UL/CSA listed. Ideal for residential and commercial hot water circulation.
Specifications:
-
Electrical: 1/25 HP, 115 volts, 1 phase, 60 Hz
-
Power Consumption: 89/80/60 Watts
-
Current: 0.75/0.66/0.55 Amps, thermally (impedance) protected
-
Minimum Fluid Temperature: 36°F
-
Maximum Fluid Temperature: 230°F
-
Minimum Required Inlet Pressure: 15.6 PSI @ 230°F, 4.0 PSI @ 190°F, 1.3 PSI @ 140°F
-
Connection Type: Two 1/2" diameter bolt holes
-
Flange-to-Flange Dimension: 6-1/2"
-
Overall Length: 5-1/4"
-
Maximum Width: 4-3/16"
-
Weight: 7.25 lbs
Pump Capacity Table (GPM):
| Model | Speed | HP | Amps | Watts | Head (ft) | 0' | 5' | 10' | 12' | 15' | Shut-off |
|---|---|---|---|---|---|---|---|---|---|---|---|
| UPS15-58F | 3 | 1/25 | 0.75 | 89 | 17 | 13 | 9 | 7 | 4.5 | 19' | |
| UPS15-58F | 2 | 0.66 | 80 | 15 | 10 | 6 | 4 | 2 | 17' | ||
| UPS15-58F | 1 | 0.55 | 60 | 10 | 2 | - | - | - | 13.5' |
Key Benefits:
-
Durable cast iron construction
-
Quiet, maintenance-free operation
-
Energy-efficient 3-speed control
-
Suitable for closed hot water systems
