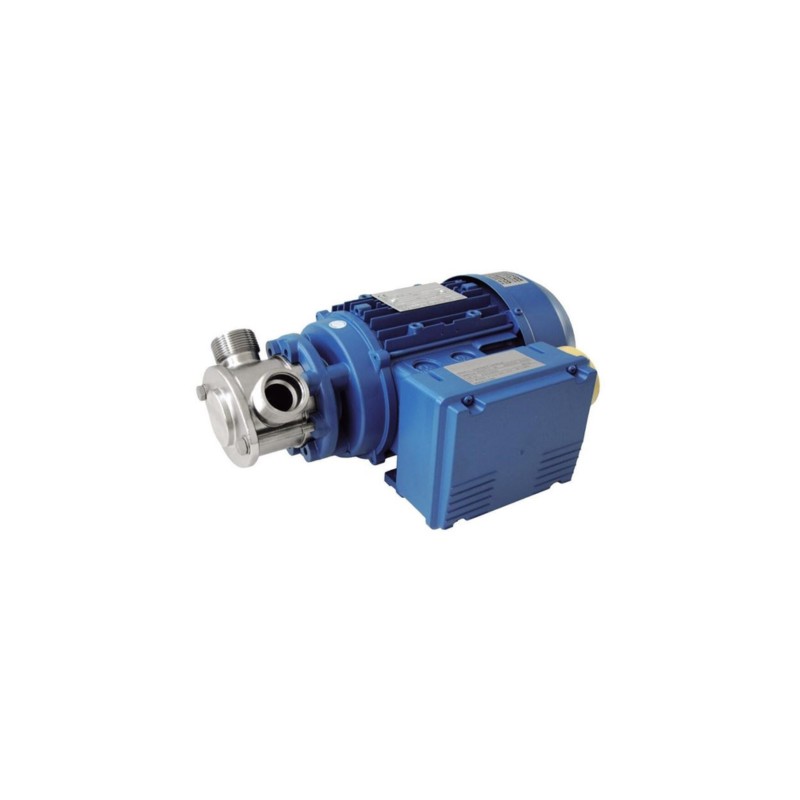

The Liverani Miniverter Flexible Impeller Pump combines all the advantages of the FEP MINI and MIDEX pumps with integrated variable speed control. Constructed from SS316 stainless steel and available with various sealing and impeller material options, the Miniverter is ideal for a wide range of industrial, chemical, and food-grade pumping applications.

Thanks to their flexible polymer vanes, these pumps handle both clean, light liquids and viscous, solid-laden slurries with ease. Impeller materials are available to suit specific fluids—NBR for fats and fuels, EPDM for chemicals and hot fluids, and natural rubber for water-based liquids. FDA-certified EPDM and NBR options make the Miniverter a popular electric food-grade pump solution. Its low shear operation preserves the integrity of delicate fluids that other pump types might damage.

With a dry self-priming capability of up to 6 meters, the Miniverter is perfect for applications requiring strong suction lift, such as tank or sump emptying. The integrated inverter control allows speed adjustment between 285–1400 rpm, while the built-in rocker switch lets you instantly reverse flow direction—all within an IP55-rated terminal box. Optional carrying handles and trolleys enhance portability for on-site use.

Key Features:

• Close-coupled SS316 flexible impeller pump with integrated variable speed control (inverter dial on terminal box)

• Smooth, pulsation-free flow for shear-sensitive liquids

• Solids passage: up to 3mm (MINI), 5mm (MIDEX)

• Self-priming up to 6m without a non-return valve

• Operable in either direction via reversing switch

• Pump head can be rotated and mounted in various positions

• Wide range of connection types: DIN, BSP, Triclover, SMS, RJT, Friederich, Garolla, Macron

• Supplied with BSP connections, hose fittings, clamps, and seals as standard

• Optional manual (MINI) or spring-loaded (MIDEX) by-pass

• Compatible with dispensing nozzles

• Optional automatic drum filling kits (nozzle, non-return valve, pressure switch)

• Optional carrying handles and trolleys for portability

Typical Applications:

• Food and beverage processing

• Chemical transfer

• Tank-to-tank and drum-to-tank transfer

• Barrel and container filling/emptying

• Delicate fluid handling

Usage Instructions & Safety Information:

• Always follow the manufacturer’s installation and operation guidelines.

• Select the appropriate impeller material for your fluid type to ensure compatibility and longevity.

• Avoid extended dry running to prevent impeller wear.
