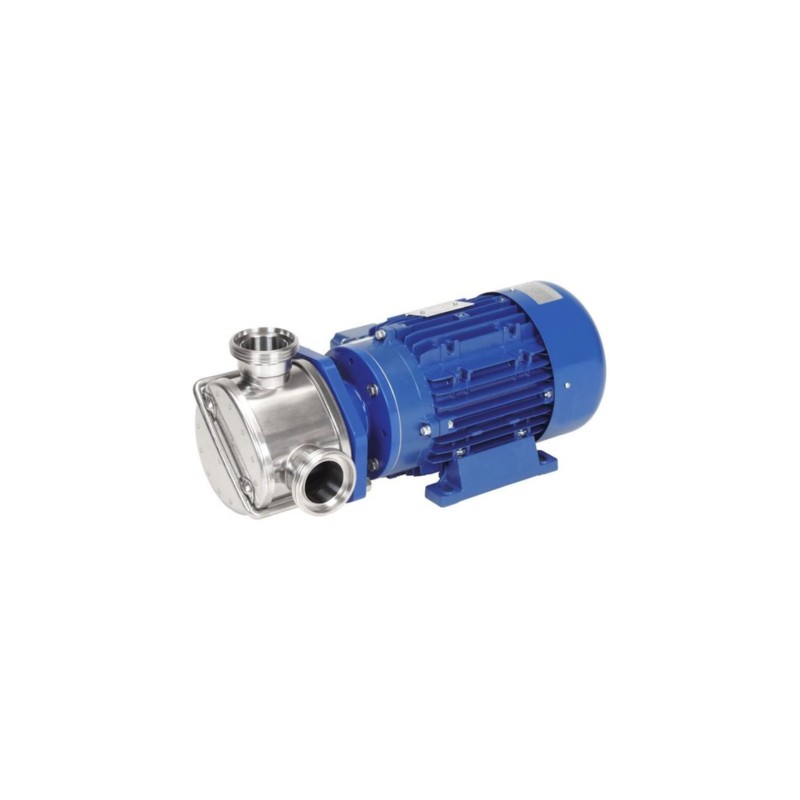

The Liverani EP MINOR range of close-coupled stainless steel flexible impeller pumps delivers a compact, cost-effective, and versatile pumping solution. Operating on a similar principle to centrifugal pumps, the flexible polymer vanes bend as they push liquid through, allowing the pump to handle a wide range of fluids.

Thanks to their supple vanes, these pumps can process clean, light liquids as well as viscous, solid-laden slurries. With multiple impeller material options—including NBR for fats and fuels, EPDM for chemicals and hot fluids, and natural rubber for water-based liquids—the Liverani EP MINOR is compatible with many applications. FDA-certified EPDM and NBR impellers make it an excellent choice for food-grade pumping.

The low shear operation is ideal for delicate liquids that could be damaged by other pump types. With a dry self-priming capability of up to 6 meters, these pumps are ideal where high suction lift is required, such as emptying tanks, sumps, or other containers. When paired with a carrying handle and an integrated reversing switch, they become a highly reliable utility pump for tank-to-tank transfers.

Key Features:

• Compact, close-coupled stainless steel design

• Smooth, non-pulsating flow for shear-sensitive liquids

• Solids passage capability: up to 10mm

• Self-priming up to 6m without a non-return valve

• Reversible pumping via integrated reversing switch

• Optional 2-speed operation controlled by a rocker switch

• Pump head can be rotated and mounted in several positions

• Motor supply: 230V & 400V

• Wide range of impeller materials: Food grade NBR, Neoprene, Food grade EPDM, Natural Rubber, Silicon

• Connection types: DIN, BSP, Triclover, SMS, RJT, Garolla, Friederich, Macron (Garolla standard for MINOR)

• Stainless Steel AISI 304 pipe fittings for integration; SS316 available on request

• Accessories: inverter drive, dry run protection, pressure switch, level sensors, remote control, radio operation

• Optional barrel filling kits with nozzle, non-return valve, and pressure switch

• Stainless steel sanitary pump enclosures for food applications

Typical Applications:

• Tank-to-tank transfer

• Barrel and container filling/emptying

• Food and beverage processing

• Oil, fuel, and chemical handling

• Wastewater and slurry transfer

Usage Instructions & Safety Information:

• Follow the manufacturer’s installation and operation guidelines.

• Match impeller material to the fluid type for compatibility and durability.

• Avoid prolonged dry running to prevent impeller damage.
