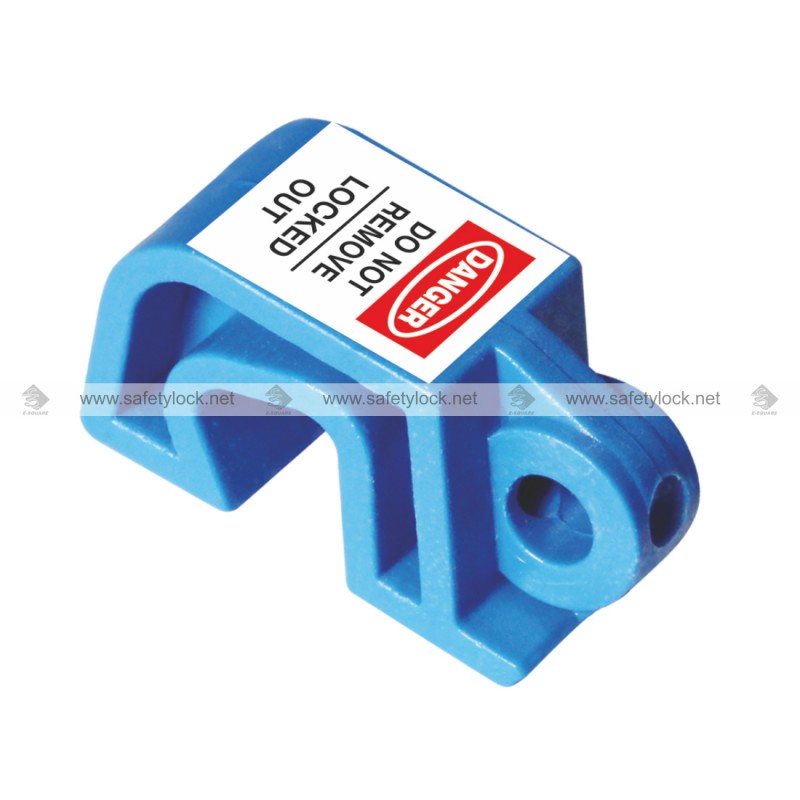

Key Features

• Universal Compatibility: Designed to fit a wide range of miniature circuit breakers, including both single and multi-pole types.

• Durable Construction: Made from high-quality materials like ABS or PVC, ensuring longevity and resistance to wear.

• Easy Installation: Typically requires a small screwdriver for tightening, allowing for quick and secure application.

• Padlock Integration: Features a hole for inserting a padlock, enhancing safety by preventing unauthorized removal.

• Color-Coded: The blue color aids in easy identification and differentiation from other lockout devices.

Specifications

• Material: ABS or PVC plastic

• Color: Blue

• Attachment Size: Typically accommodates breaker toggles up to 10mm

• Padlock Compatibility: Designed to fit standard padlock shackles (e.g., 8mm)

• Temperature Range: Suitable for use in environments ranging from -40°F to 158°F (-40°C to 70°C)

Applications

This lockout device is ideal for use in various industries, including:

• Manufacturing Plants: Ensuring machinery is de-energized during maintenance.

• Construction Sites: Preventing accidental electrical activation during building operations.

• Utilities: Safeguarding workers during electrical system servicing.

• Laboratories: Protecting personnel when working with experimental setups.

Installation Instructions

1. Position the lockout device around the circuit breaker toggle.

2. Tighten the internal screw using a small screwdriver until the device is securely clamped onto the breaker.

3. Insert a padlock through the designated hole to prevent unauthorized removal.

4. Verify that the device is firmly in place and that the breaker cannot be operated.
