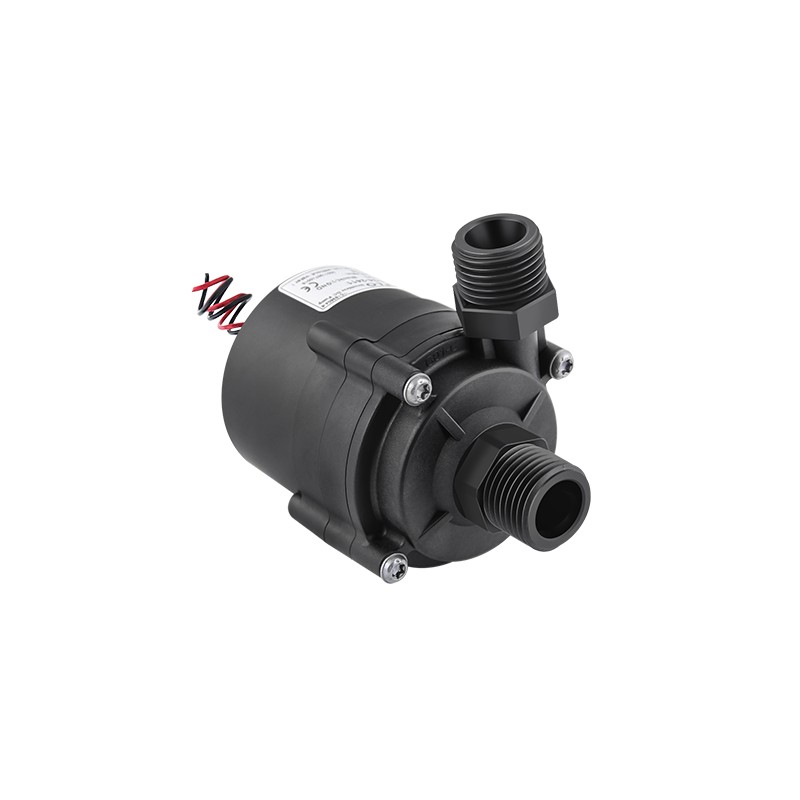

The Medical Equipment Water Pump C01 is a compact, reliable DC brushless water pump engineered for critical medical applications. It ensures stable cooling, leak-free operation, and long service life, making it ideal for gene sequencers, diagnostic analyzers, and other sensitive medical devices.

Manufactured with raw materials imported from Japan, this pump undergoes stringent testing, including:

• 28 bar burst pressure water test

• High/low temperature sampling tests

• 100% airtightness test

• 100% comprehensive performance test

• 100% aging test

To ensure the highest quality, all units are produced in a dust-free, anti-static facility under TÜV ISO9001 & IATF16949 certification, guaranteeing medical-grade safety and reliability.

Key Features:

• Brushless DC motor with >20,000 hours working life

• Advanced magnetic driving technology – static-seal, zero leakage

• Heavy-duty continuous operation capability

• 3-phase motor for low power consumption and reduced heat generation

• Durable permanent magnetic rotor/impeller with fine ceramic shaft

• High-efficiency closed-type impeller reduces water loss and improves performance

• Stable low-vibration rotor design with high precision injection molding

• Liquid temperature resistance up to 100°C

• Ultra-quiet operation ≤40dB(A)

• IP68 protection rating

• Food-grade materials – FDA, WRAS, RoHS, CE, NSF certified

• Japanese XYRON PPE material for durability and safety

• Built-in protections: Over-Voltage, Over-Current, Blocked-Protection

• Low or no maintenance required

Typical Applications:

• Gene sequencers cooling

• Medical diagnostic equipment cooling

• Laboratory analyzers

• Medical device fluid circulation

• Chip platform cooling systems

Specifications:

• Model: Medical Equipment Water Pump C01

• Type: Brushless DC centrifugal circulation pump

• Service Life: >20,000 hours

• Noise Level: ≤40 dB(A)

• Temperature Resistance: Up to 100°C

• Ingress Protection: IP68

• Certification: FDA, WRAS, RoHS, CE, NSF

• Quality Control: TÜV ISO9001 & IATF16949 standards

Warranty:
Standard manufacturer warranty (terms apply)
