    Dräger X-dock® 5300/6300/6600

    Review (0)

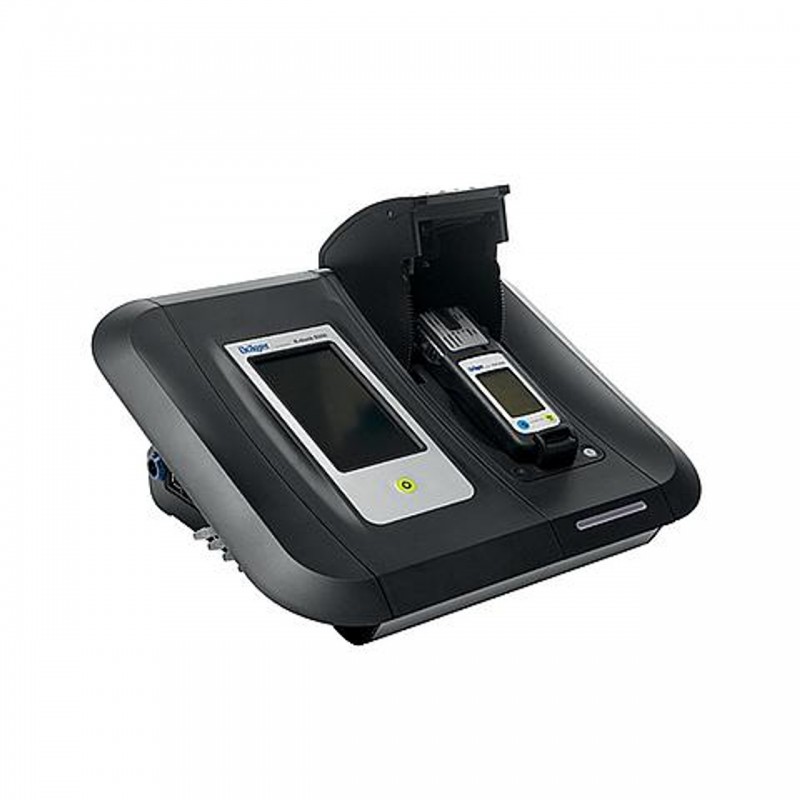

    The Dräger X-dock® 5300/6300/6600 is a modular calibration and bump test station designed for Dräger portable gas detectors. It offers automated testing, reduced gas consumption, and comprehensive data documentation, ensuring optimal performance and compliance with safety standards.

    Quantity :
    testtesttest
    Allowed extensions: .pdf, .png, .jpeg, .gif, .jpg,
    • Secured
    • Fast Delivery
    • 7 days Return

    Key Features

    • Modular Design: The X-dock® 5300 includes a master station with a single module, while the X-dock® 6300 and 6600 versions can be expanded up to 10 modules, accommodating multiple gas detectors simultaneously.

    • Touchscreen Operation: The master station features an intuitive touchscreen interface, allowing for easy configuration and monitoring of test routines.

    • Automated Testing: Upon inserting a gas detector and closing the lid, the X-dock® automatically detects the sensor combination and performs tests using connected calibration gases.

    • Reduced Gas Consumption: Each module operates with a reduced gas flow of 300 mL/min, 40% less than traditional systems, leading to cost savings on test gases.

    • Comprehensive Documentation: Test results, including instrument status, tester name, and location, are stored in the database. Calibration certificates can be printed via compatible USB printers.

    • Sensor Performance Testing: The system includes automatic tests of all alarm elements (acoustic, visual, and vibration) and sensor response times.

    • Charging Function: Optional charging capabilities are available for X-am® 1/2/5x00 and 3500/8000 series detectors.

    • Flexible Power Options: The X-dock® can operate on 12V power, making it suitable for use in vehicles.

    Technical Specifications

    FeatureX-dock® 5300X-dock® 6300/6600
    Modules 1 Up to 10
    Gas Inlets 3 test gas + 1 fresh air 6 test gas + 1 fresh air
    Gas Flow 300 mL/min per module 300 mL/min per module
    Power Supply 24V 24V
    USB Ports 3 USB 2.0 devices / 1 USB host 3 USB 2.0 devices / 1 USB host
    Network Connection Yes Yes
    Dimensions (Master) 120 x 130 x 250 mm 120 x 130 x 250 mm
    Dimensions (Module) 90 x 145 x 250 mm 90 x 145 x 250 mm
    Protection Class IP20 IP20
    Weight (Master) 1500 g 1500 g
    Weight (Module) 900–960 g 900–960 g

    ???? Software Integration

    The X-dock® integrates with Dräger Gas Detection Connect software, enabling centralized management of gas detection instruments. Features include

    Centralized Device Configuration: Edit device settings without bringing each instrument to the workshop.

    • Automated Notifications: Receive email alerts when inspections are due or intervals have expired.

    • Comprehensive Reporting: Generate and access detailed test reports and calibration certificates.

    • Remote Monitoring: Monitor operational readiness and utilization of test stations
