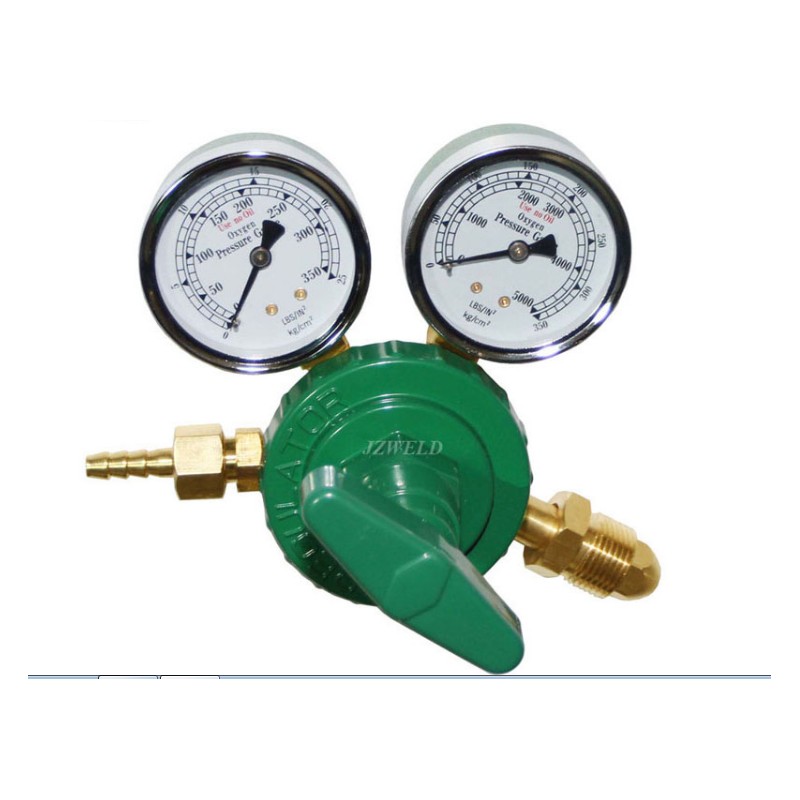

The Nakata Oxygen Regulator is engineered to deliver consistent and accurate oxygen pressure regulation, making it ideal for various industrial applications, including welding, cutting, and other gas-related operations.
Key Features:
Durable Construction: Crafted from full brass, ensuring superior strength and resistance to corrosion.
High Pressure Capability: Handles maximum input pressures up to 150 kg/cm² (approximately 2,125 psi).
Precise Output Pressure: Delivers consistent output pressure up to 10 kg/cm² (approximately 142.5 psi).
Safeguarded Inlet: Equipped with a sintered bronze filter to protect the inlet from impurities.
High Flow Rate: Features a large internal design for efficient gas flow.
Clear Gauges: Twin gauges provide accurate readings of cylinder and working pressures.
Protective Cover: The snap-on front cover safeguards the gauges from damage.
Specifications:
Materials: Full brass construction.
Max Inlet Pressure: 150 kg/cm² (2,125 psi).
Max Output Pressure: 10 kg/cm² (142.5 psi).
Suitable Gas: Oxygen.
Application: Industrial cutting and welding.
Connection Type: Threaded.
Valve Seat: Single-seat design.
Structure: Diaphragm.
Inlet Connection: G5/8".
Outlet Connection: G3/8".
Max Inlet Pressure: 250 Bar (approximately 3,625 psi).
Working Pressure Range: 3.0–10.0 Bar (approximately 43.5–142.5 psi).
Applications:
This regulator is suitable for various industrial applications, including:
Welding operations.
Cutting processes.
Other gas-related industrial tasks.
