Specifications

• Measurement Range: -4°F to 608°F (-20°C to 320°C)

• Accuracy:

  • Above 32°F (0°C): ±3.6°F (±2°C) or 2% of reading, whichever is greater

  • Below 32°F (0°C): ±5.4°F (±3°C) or 2% of reading, whichever is greater

• Resolution: 0.1°F/°C

• Distance-to-Spot Ratio: 8:1

• Emissivity: Fixed at 0.95

• Laser Class: Class II, <1mW

• Response Time: 500 ms

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: 14°F to 122°F (-10°C to 50°C)

• Power Source: 1 × 9V battery (included)

• Auto Power-Off: After 7 seconds of inactivity

• Weight: 4.22 oz (120g) without battery

• Dimensions: 5.98 x 4.65 x 1.26 inches (152 x 118 x 32 mm)

Key Features

• Backlit LCD Display: Ensures visibility in low-light conditions.

• Switchable Laser Targeting: Helps pinpoint measurement area; can be turned off when not needed.

• °F/°C Selectable: Allows for unit preference.

• Low Battery Indicator: Alerts when battery replacement is needed.

• CE, RoHS, WEEE Approved: Complies with international safety and environmental standards.

• Ergonomic Design: Provides comfortable handling for extended use.

Applications

The IRT207 is ideal for:

• HVAC/R: Checking duct temperatures and system diagnostics.

• Electrical: Identifying overheating components or connections.

• Plumbing & Heating: Monitoring pipe temperatures and system performance.

• Automotive: Assessing engine and exhaust temperatures.

• General Industrial Use: Measuring surface temperatures of machinery and equipment.

Included in the Box

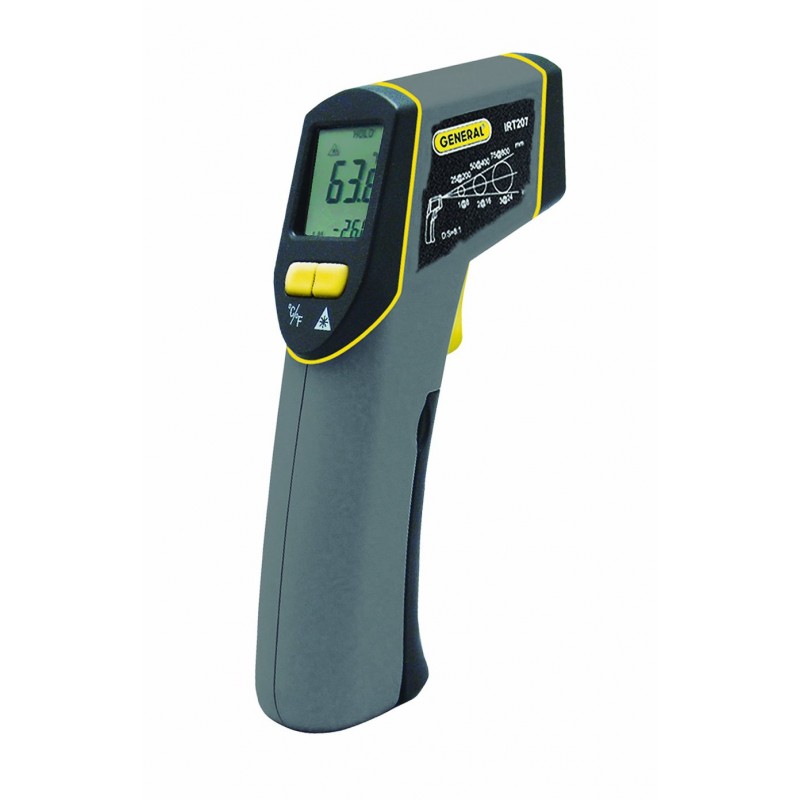

• IRT207 Infrared Thermometer

• 9V Battery

• User Manual
